Authentication (OATH)

The OATH action lets your scenario pass a time-based one-time password (TOTP) step. Many services use TOTP as a multi-factor authentication (MFA) method during login - apps like Google Authenticator, Authy, or Microsoft Authenticator generate a short-lived code that the user must enter to prove their identity. The OATH action automates this step so you can monitor MFA-protected login flows without manual intervention.

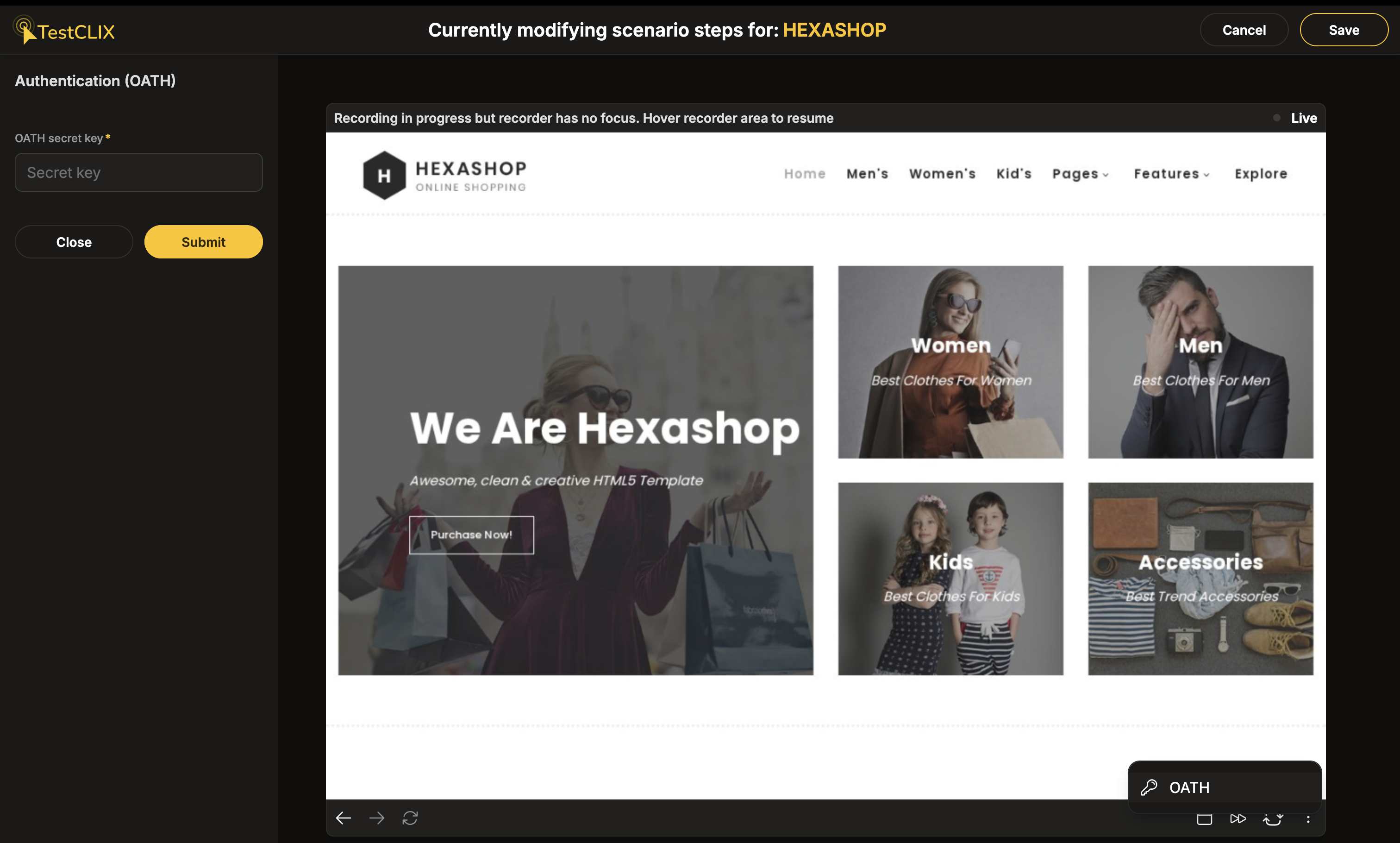

How to add an OATH step

The generated code is pasted into whichever input field is currently active on the page. Before adding the OATH step, click on the MFA code input field to make sure it has focus.

1. In the recorder, make sure you are in Live mode.
2. Click on the TOTP input field on the page so it receives focus.
3. In the toolbox, select Add OATH. If it is not visible, open More actions.
4. Choose the key source:
   • Text - enter the Base32-encoded TOTP key directly. The key is masked by default - use the show/hide toggle to check what you typed.
   • Secret - select a secret stored in the current project. You can create one from the same picker if needed. See Using a stored secret.
5. Enter or select the TOTP key.
6. Click Submit.

The recorder generates a fresh code from the key, types it into the active input field, and adds an Authentication event to the timeline. If you entered the key as Text, the key itself is stored with the event - it is not added to the project’s secrets. If you picked a stored secret, only the reference to it is stored.

Tip

In the narrow recorder panel, the source dropdown may show only its icon rather than the Text or Secret label.

How it works

During monitoring, TestCLIX generates a new TOTP code using the selected key and the current time. Because TOTP codes are time-based and deterministic, this produces a valid code for the current time window without any manual input.

Only the TOTP key source is stored - never the generated code itself. A text key is saved with the recording. A project secret is referenced by its stored secret ID and resolved when the scenario runs. Each run produces a fresh code valid for that moment.

Caution

When you use the Text source, the TOTP key is stored inside the recording. Prefer a project secret when the key should be managed centrally and rotated without recording it again.

Using a stored secret

Instead of entering the key as Text, you can set the source to Secret and point the OATH step at a secret stored in the project. The key is then held in project settings rather than in the scenario, and it is resolved on the server at run time - the recorder never displays it.

This is worth doing when:

• the same MFA account is used by more than one scenario
• you rotate the key and do not want to re-record every scenario that uses it
• you would rather not have the key readable inside the recording

The picker is searchable and lists the project’s stored secrets. If the secret does not exist yet, you can create it without leaving the recorder - see below.

Create a secret from the picker

At the top of the secret list is a Create secret entry. It opens the Secrets dialog, where you add the secret with the same form as on the Secrets settings tab.

Once you save it, the new secret is selected in the OATH step automatically - you do not have to pick it from the list again.

Note

Stored values are write-only and cannot be viewed after saving, so keep your own copy of the TOTP key. To change it later, replace the value on the Secrets tab in Settings.

How the step shows its secret

Once recorded, an OATH step that uses a stored secret displays the secret’s name as Name: <secret name> on the step card and in the timeline status bar.

If the secret has since been deleted, the step shows “Secret deleted” in red instead. To repair it, change the secret on the step.

Note

An OATH step whose key was entered as Text shows no secret name, because there is no stored secret to reference. This is expected and not an error.

Changing the key later

You do not have to re-record an OATH step to change the key it authenticates with. Select the event in the Session Timeline, choose a new Text or Secret value in Event Preview, and click Save secret - see Change a Step’s Secret.

Best used for

• Logging into accounts protected by TOTP two-factor authentication
• Passing MFA challenges during automated monitoring of login flows
• Monitoring admin panels, banking portals, or any service that requires a one-time code at sign-in

Common errors

Error	Meaning	What to do
Error generating token	The secret is invalid or incorrectly formatted.	Verify the TOTP secret is a valid Base32-encoded key from your authentication provider. If the step uses a stored secret, check that the stored value is the key itself and not a generated code.
Secret deleted	The recorded event references a project secret that no longer exists.	Select another stored secret or enter a valid Text key in Event Preview. See Change a Step’s Secret.

Caveats

Note

Only time-based one-time passwords (TOTP) are supported. Event-based one-time passwords (HOTP) are not available.

• Make sure the target input field is focused before adding the OATH step. The generated code is typed into whichever field currently has focus.
• The system clock on the playback environment must be accurate. TOTP codes are valid only within a short time window (typically 30 seconds), so clock drift can cause codes to be rejected.
• If the application rejects a code that was already used within the same time window, playback may fail. This can happen when a scenario is replayed very quickly after a previous run.
